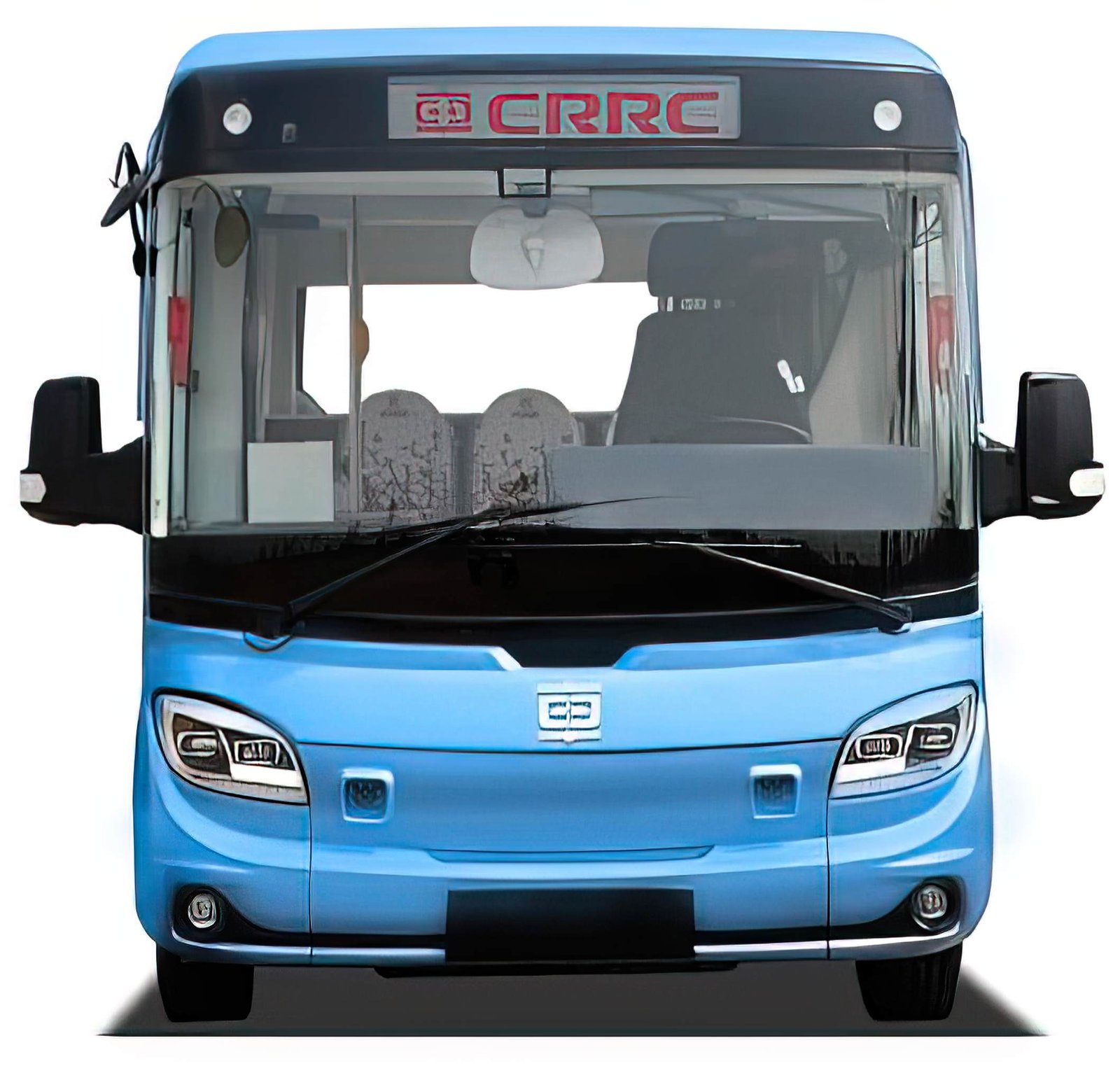

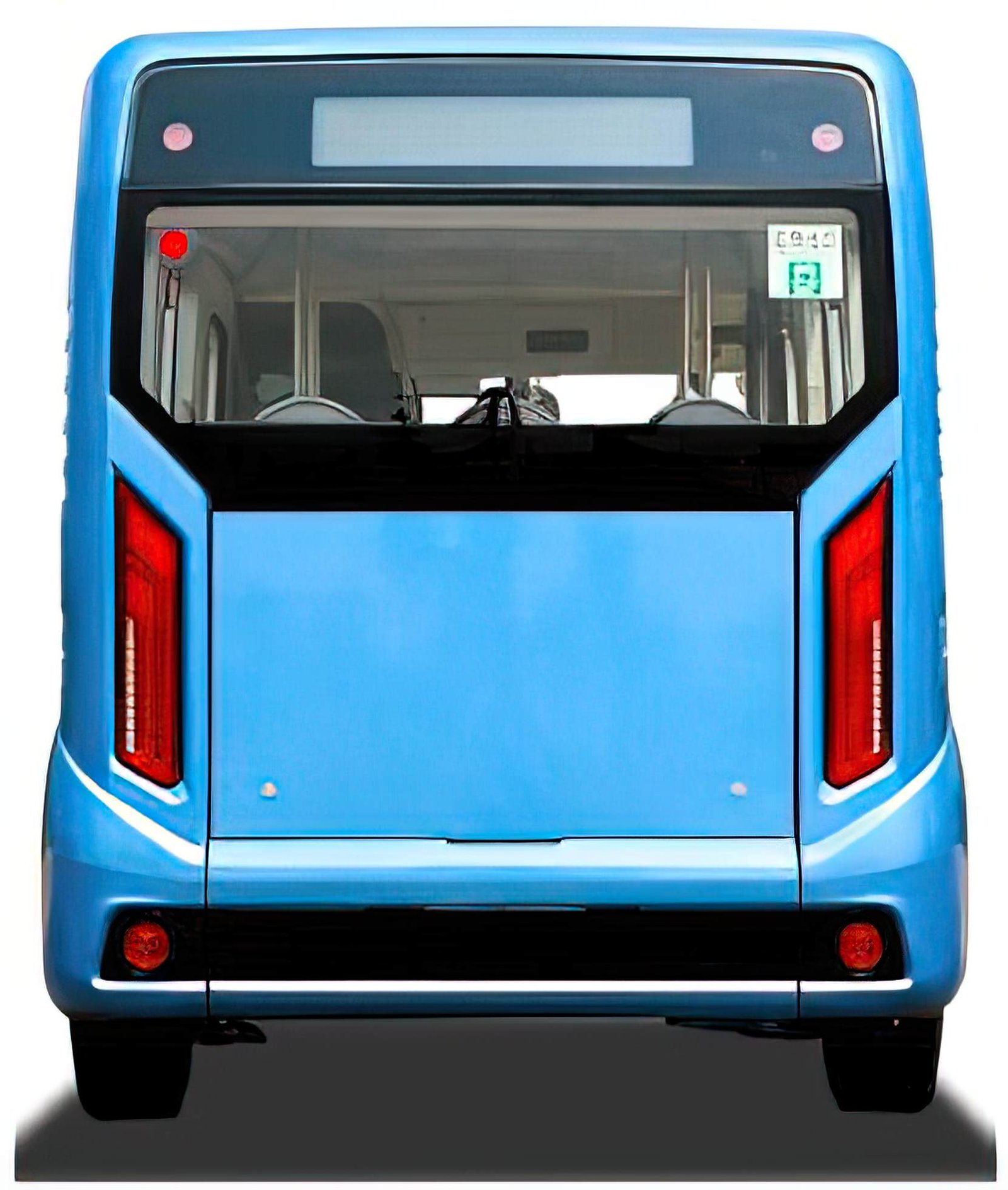

EV-Bus 5.3m

Model BUS53
L*W*H 5330*1999*2410
Wheel base 3550
Range percharge 180
Steering wheel position LHD/RHD
Max power 105kw
Motor type PMSM
Max Speed 69km/h
Battery 70.2kwh
Tire model 215/75R17.5
Color WHITE
SEATS 12

Description

Dimensionand Weight Model EVBUS53
L*W*H 4990*1650*2050
Wheel base 3050
Overhang lengthFront/Rear 1015/765
Curb Weight (kg) 3660
SEATS 10-12
Gross Weight 5000
Approach angle/departure angle 13°/22°
Tire Size 175R14LT 8PR
Performance Battery Lithium Iron Phosphate
Battery Capacity (kwh) 70.2
Motor Type PMSM
Max. Power(KW) 105/45
Max. Torque (N.m) 320/120
Max. Speed (km/h) 69
Max. Mileage (km) 180
Chassis Front/Rear Suspension  leaf spring, front 3 rear 3
