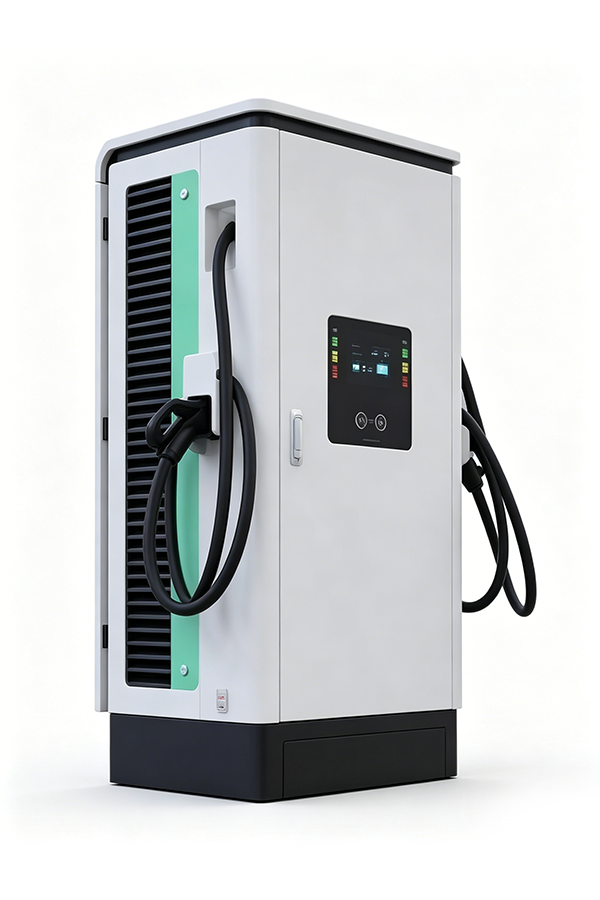

Integrated DC fast charging station
 |
Output power specifications | DC 40（kw） | DC 80（kw） | DC 120（kw） |
| Model | TQZY/750S1-40 | TQZY/750S1-80 | TQZY/750S1-120 | |
| Number of charging guns | 2 | |||
| Gun thread length | 5（m） | |||
| Charge mode | Full power impulse, AB balanced impulse | |||
| W.H.D | 700*1700*400(mm) | |||
| Input | ||||
| Input voltage | AC380V±20% | |||
| Input current | 61A | 122A | 182A | |
| Input frequency | 50Hz±20% | |||
| Output | ||||
| Output voltage | DC200V-750V | |||
| Output current | 100A | 200A | 250A | |
| BMS power assist | 12V/24V | |||

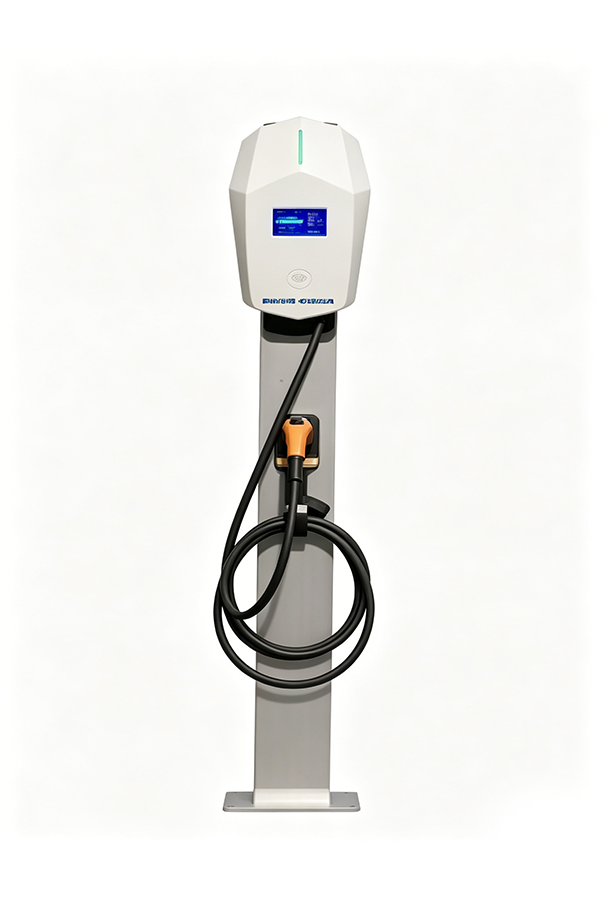

Vertical AC charging station
|
|
Output power specifications |
AC 7（kw） |
AC 14（kw） |
| Model |
TQZY/220D1-07 |
TQZY/220D1-14 |
|
| Number of charging guns |
1 |
||
| Gun thread length |
5（m） |
||
| Charge mode | Automatic filling, by amount | ||
| W.H.D |
246*314*110(mm) |
||
|
Input |
|||
| Input voltage |
AC220V±15% |
||
| Input current |
32A |
64A |
|
| input frequency |
50Hz |
||
|
Output |
|||
| Output voltage |
AC220V±15% |
||
| Output current |
32A |
64A |
|

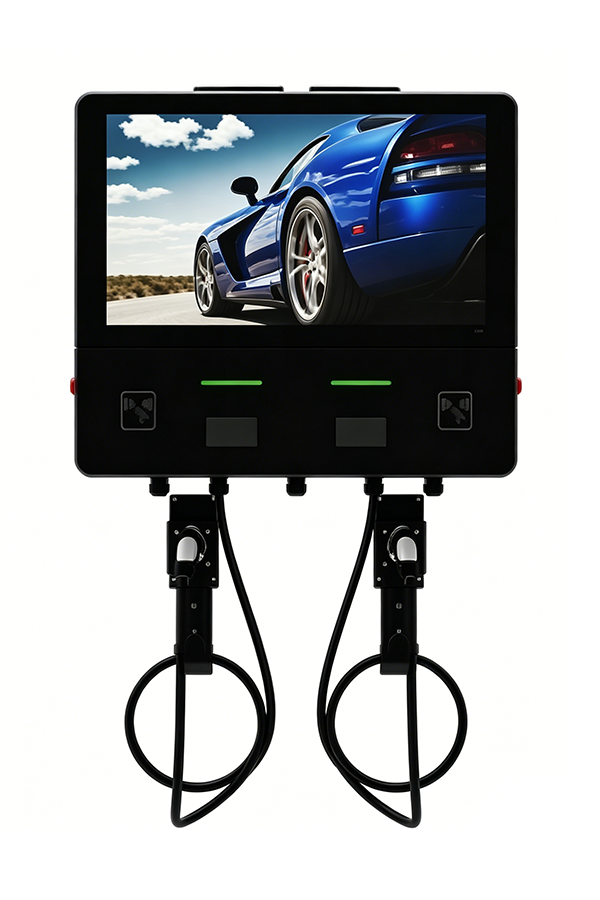

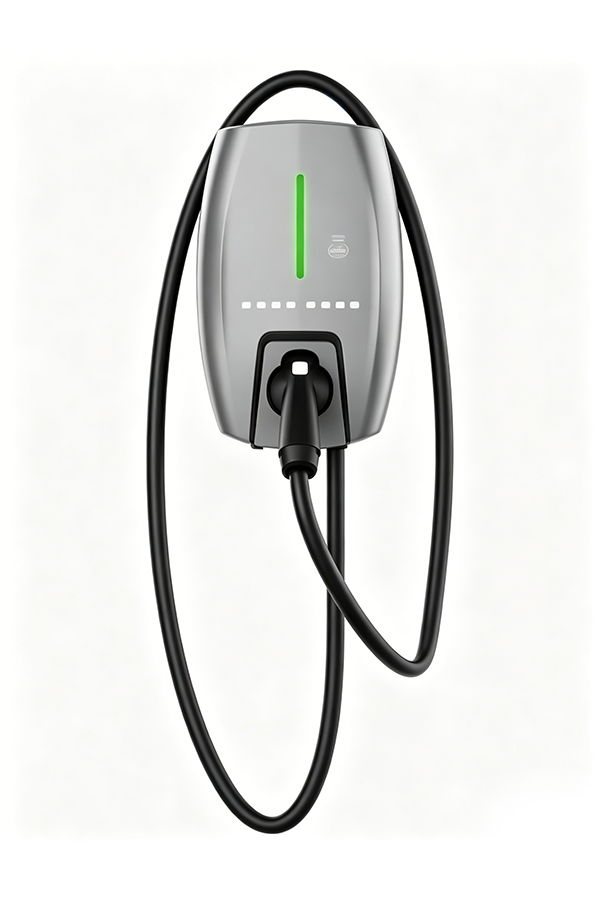

Wall mounted AC charging station
 |
Output power specifications |
AC 7（kw） |
AC 14（kw） |
| Model |
TQZY/220E1-07 |
TQZY/220E1-14 |
|
| Number of charging guns |
1 |
||
| Gun thread length |
5（m） |
||
| Charge mode | Automatic filling, by amount | ||
| W.H.D |
246*314*110(mm) |
||
|
Input |
|||
| Input voltage |
AC220V±15% |
||
| Input current |
32A |
64A |
|
| Input frequency |
50Hz |
||
|
Output |
|||
| Output voltage |
AC220V±15% |
||
| Output current |
32A |
64A |
|
