01-EV-VAN（7 seats）
 |
CEP-07A |
|||
| L*W*H（mm） |
3950*1655*2000 |
Front Suspension |
MacPherson Independent Suspension |
|
| Wheelbase（mm） |
2750 |
Rear Suspension | Rear Leaf Spring (5 Leaves), | |
| Wheel track( F/R)（mm） |
1450/1435 |
EPS |
Optional |
|
| Curb weght(kg) |
1350 |
Brake System | Hydraulic Braking, F/Disc R/ Drum | |
| Full-load mass(kg) |
2200 |
Parking Brake Type |
Handbrake |
|
| Quantity of doors |
6 |
ABS |
Optional |
|
| Rear door opening method |
Slide open |
Tire Specification |
165/70 R14C |
|
| CLTC Range (km) |
150 |
Driver/Passenger
Seat Adjustment |
Fore-and-Aft Adjustment, Backrest Adjustment | |
 |
Seats |
7 |
AC System |
Optional |
| Max Speed (km/h) |
90 |
Central Control Door Lock |
Optional |
|
| Max Gradeability (%) |
30 |
Front/Rear Power Windows |
Optional |
|
| Min Turning Diameter (m) |
10 |
Rearview Mirror | Manual Rearview Mirror | |
| Min Ground Clearance (mm) |
≥180 |
USB | Cigarette Lighter, with USB Interface | |
| Motor Power (kW) |
25/50 |
Charging Mode | Slow Charging 3.3KW, Fast Charging Port Optional | |
| Total Motor Torque (N·m) |
220 |
Transmission Type |
Fixed Gear Ratio |
|
| Motor Layout |
Rear Mounted |
Drive Mode |
RR |
|
| Battery Energy (kWh) |
32 |
Rear Axle Final Drive Ratio |
10.5:1 |
|
| Battery Type | Lithium Iron Phosphate Battery | |||

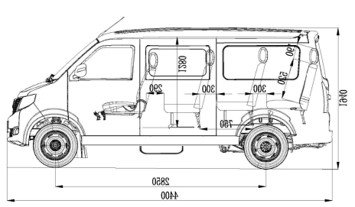

02-EV-VAN（9-11 seats）
 |
CEP-09A |
|||
| L*W*H（mm） |
4400*1650*1920 |
Transmission Type | Fixed Gear Ratio Transmission | |
| Wheelbase（mm） |
2850 |
Drive Mode | Rear-Mounted, Rear-Wheel Drive | |
| Wheel track( F/R)（mm） |
1390/1435 |
Rear Axle Final Drive Ratio |
10.5:1 |
|
| Curb weght(kg) |
1380 |
Front Suspension | MacPherson Independent Suspension | |
| Full-load mass(kg) |
2505 |
Rear Suspension | Leaf Spring (5 Leaves), | |
| Quantity of doors |
5 |
EPS |
Optional |
|
| Rear door opening method |
upturning |
Brake System | Hydraulic Braking, Front Disc Rear Drum Brakes | |
| CLTC Pure Electric Range (km) |
270～300 |
Parking Brake Type |
Handbrake |
|
 |
||||
| Seats |
9～11 |
ABS |
Optional |
|
| Max Speed (km/h) |
90 |
Wheel Rim Material |
Steel |
|
| Max Gradeability (%) |
22 |
Tire Specification | 175R14LT 8PR | |
| Min Turning Diameter (m) |
11 |
Driver /Passenger
Seat Adjustment |
Fore-and-Aft Adjustment, Backrest Adjustment | |
| Min Ground Clearance (mm) |
≥160 |
Air Conditioning System |
Optional |
|
| Motor Type | Permanent Magnet Synchronous | Central Control |
Optional |
|
| Total Motor Power (kW) |
30/60 |
Front/Rear Power Windows |
Optional |
|
| Total Motor Torque (N·m) |
200 |
Charging Mode | Slow Charging 3.3KW, Fast Charging Port Optional | |
| Motor Layout |
Rear Mounted |
Battery Type | Lithium Iron Phosphate Battery | |
| Battery Energy (kWh) |
41.86 |
|||
03-EV-VAN（11-14 seats）
 |
Basic parameters | ||
| Content | CEP-11A | CEP-14A | |
| L*W*H(mm) | 4890*1715*1990 | 5390*1715*1995 | |
| Wheelbase(mm) | 3150 | 3380 | |
| Rated weight(kg) | 1750 | 1920 | |
| Seats | 11 | 14 | |
| Max total weight(kg) | 3150 | 3250 | |
| Type of power battery | Lithium iron phosphate | ||
11 seats
|
Range(CLTC) | 210-230(km) | 210-230(km) |
| Capacity of battery (KWh) | 41.5 | 60.473 | |
| Motor power(kw) | 40-80 | 40-80 | |
| Warranty(motor, control,, battery ) | 5 years or 200,000 km | 5 years or 200,000 km | |
| EPS | ● | ● | |
14 seats
|
ABS+EBD | ● | ● |
| Convection heater | ● | ● | |
| Front Air conditioner | ● | ● | |
| Top steaming air conditioner | ● | ● | |

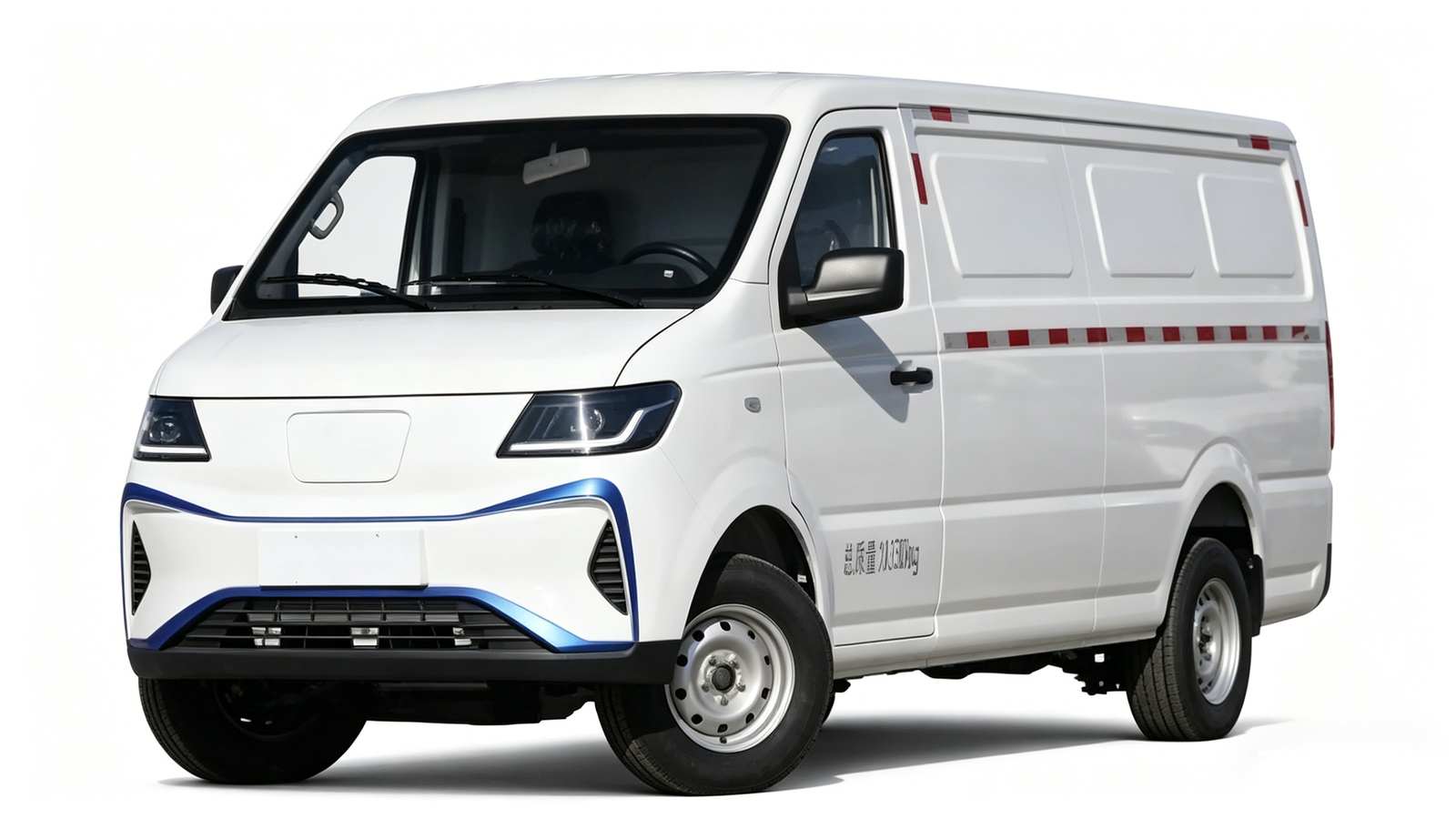

04-EV-Mini cargo
 |
Basic parameters |
||
| Content |
CEC-01A(6m³) |
CEC-02A（7.2m³) |
|
| L*W*H(mm) |
4890*1715*1990 |
5390*1715*1900 |
|
| Wheelbase(mm) |
3050 |
3380 |
|
| Rated weight(kg) |
1750 |
1920 |
|
| Seats |
2 |
2 |
|
| Max total weight(kg) |
3150 |
3250 |
|
| Type of power battery |
Lithium iron phosphate |
||
| Range(CLTC) |
220 (km) |
220 (km) |
|
| Capacity of battery (KWh) |
41.5 |
60.473 |
|
| Motor power(kw) |
40-80 |
40-80 |
|
| Warranty(motor, control,, battery ) |
5 years or 200,000 km |
5 years or 200,000 km |
|
| EPS |
● |
● |
|
| ABS+EBD |
● |
● |
|
| Convection heater |
● |
● |
|
| Air conditioner |
● |
● |
|
